Fresnel vs ALR Projector Screen: What's the Difference?

Fresnel and ALR are both terms used for projector screens that handle ambient light — but they describe fundamentally different technologies designed for completely different projectors. Using the wrong one with your projector is one of the most common and expensive mistakes in home theater setup. This guide explains exactly what each technology does, why they're not interchangeable, and how to choose correctly.

What ALR Means (and What It Doesn't)

ALR stands for Ambient Light Rejection. It describes any screen surface that preferentially reflects the projector's light while absorbing or diffusing light arriving from ambient sources — ceiling fixtures, windows, lamps. ALR is a property, not a single technology. Multiple different screen structures can deliver ALR performance.

When people say "ALR screen" without qualification, they usually mean a standard long-throw ALR screen — one designed for projectors positioned on the ceiling behind the viewer or on a shelf at the rear of the room. These use crystal multi-layer coatings or lenticular micro-lens structures to achieve directionality.

Fresnel screens are also ALR screens — but they use a completely different optical structure tuned specifically for a completely different projector type. The Fresnel name describes the lens geometry used, not just the ambient-light-rejection property.

What a Fresnel Screen Is

A Fresnel screen uses a series of concentric circular lens rings — a Fresnel lens pattern — embedded in or on the screen surface. This pattern is specifically designed to handle light arriving at a very steep upward angle: the projection geometry of an ultra short throw (UST) or laser TV projector sitting just 20–60 cm in front of and below the screen.

When a UST projector fires its beam upward at 60–80° from horizontal, a standard ALR screen's optical structure can't handle it — the acceptance cone of a standard ALR is designed for a projector coming from the rear at a shallower angle. A Fresnel screen's concentric lens geometry redirects that steep upward beam correctly to the viewer's eyes while simultaneously rejecting ceiling and side ambient light.

Think of it this way: a standard ALR screen is like a satellite dish aimed at the horizon (ceiling-mounted projector). A Fresnel screen is like a satellite dish aimed nearly straight up (UST projector from below). They're different shapes because they're capturing signals from different directions.

Side-by-Side Comparison

Factor	Standard ALR Screen	Fresnel ALR Screen
Projector type	Standard long-throw (ceiling or rear shelf)	UST / laser TV only (20–60 cm from screen)
Projector position	Behind and above the viewer	In front, at the base of the screen
Optical structure	Crystal layers or lenticular micro-lens	Concentric Fresnel lens rings
Ambient light rejection	Yes — ceiling and side sources	Yes — ceiling and side sources
Works with standard projector	Yes	No — incorrect geometry
Works with UST projector	No — incorrect geometry	Yes
Image if wrong projector used	Dim, uneven, washed out	Dark bands, severe non-uniformity

What Happens If You Use the Wrong Screen

Standard ALR with a UST projector

The upward-angled beam from the UST projector arrives outside the acceptance cone of a standard ALR screen. Most of the light is absorbed or reflected away from the viewer. The image appears very dim, often with heavy non-uniformity — brighter at the bottom where the beam enters the screen and progressively darker toward the top. This is not a calibration issue; it's a fundamental geometry mismatch.

Fresnel screen with a standard long-throw projector

A standard projector's beam arrives at the wrong angle for the Fresnel lens pattern. The concentric rings refract the beam incorrectly, creating visible dark banding across the image — typically horizontal stripes corresponding to the Fresnel zone boundaries. The image is unwatchable.

Neither mismatch is fixable through settings, calibration, or positioning adjustments. The only fix is the correct screen type for your projector.

How to Identify Your Projector Type

UST / laser TV projectors (need Fresnel screen)

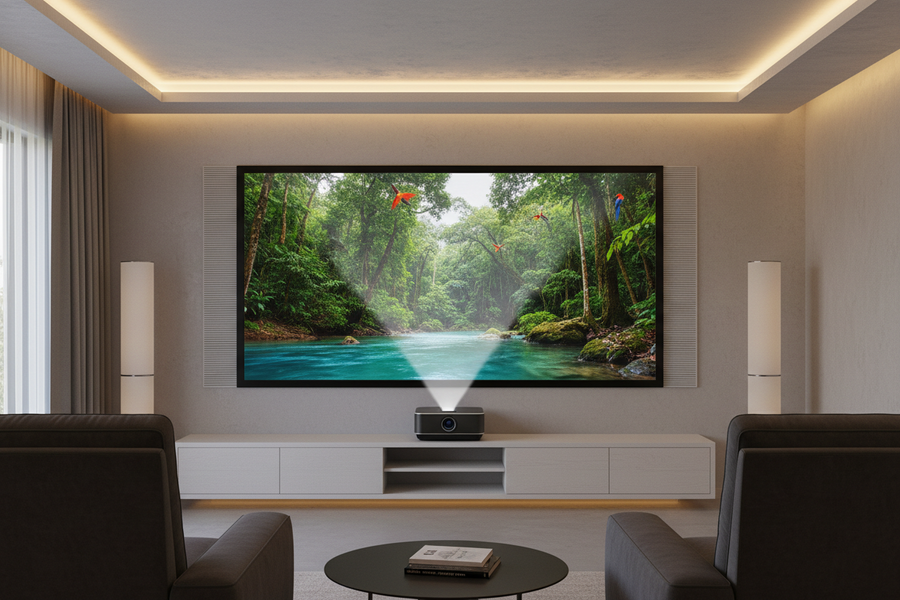

UST projectors sit on a media unit or console directly below and in front of the screen. The throw ratio is typically 0.25:1 or lower — meaning the projector sits just 25 cm from the screen for every 100 cm of image width. Common UST projector brands include:

• Hisense (PX series, L-series laser TV)
• Samsung (The Premiere LSP series)
• LG (HU85L, HU915Q CineBeam)
• AWOL Vision (LTV series)
• Dangbei (Mars Pro, Atom)
• Epson (LS series)
• BenQ (V series)

If your projector's throw ratio is below 0.4:1, you need a Fresnel screen. The TrueThrow Fresnel ALR UST Screen is purpose-built for these projectors.

Standard long-throw projectors (need standard ALR)

Standard projectors mount on the ceiling or a rear shelf and have throw ratios of 1.0:1 and above. They project from behind and above the viewer. Common brands include Epson (non-LS), BenQ (non-V), Sony VPL series, JVC, Optoma, ViewSonic.

For these projectors in bright rooms, the TrueThrow Black Crystal ALR Screen (Gain 1.0) or Grey Crystal ALR Screen (Gain 2.5) are the appropriate choices. The Lenticular CLR Long Throw Screen is optimised specifically for ceiling-mount projection geometry.

Short-Throw Projectors: A Note

Short-throw projectors (throw ratio 0.4:1 to 1.0:1) sit closer to the screen than standard projectors but not as close as UST projectors. They still project from the front of the room at a moderate angle. These generally work with standard ALR screens — check the specific throw ratio and the screen manufacturer's compatibility guidance. They do not work with Fresnel screens designed for true UST geometry.

Which TrueThrow Screen for Which Setup

Projector Type	Room Light	TrueThrow Recommendation
Standard long-throw (ceiling mount)	Dark / controlled	Matte White or High-Contrast Grey
Standard long-throw (ceiling mount)	Moderate ambient light	Black Crystal ALR (Gain 1.0)
Standard long-throw (ceiling mount)	Bright room	Grey Crystal ALR (Gain 2.5)
UST / laser TV (floor unit)	Any light level	Fresnel ALR UST Screen

---
