Electric vs Fixed Frame Projector Screen — Which is Right for You?

Electric motorized screens and fixed frame screens are both excellent — they just solve different problems. Choosing between them comes down to your room, how you use the space, and how the screen needs to look when you're not watching. This guide covers the real trade-offs so you can make the right call.

What Each Screen Type Is

Fixed frame screens

A fixed frame screen is permanently mounted on a rigid aluminum frame that attaches directly to the wall. The fabric is stretched taut across the frame and stays in position permanently. It never rolls up, never retracts — it's always there, always flat, always ready.

This is the same setup used in commercial cinemas and professional screening rooms. The rigid frame guarantees a perfectly flat image surface with zero sag, zero drift, and zero distortion at any screen size. It's the reference standard for image quality.

Electric motorized screens

An electric motorized screen stores the fabric rolled inside a housing — a slim cylindrical case that mounts on the ceiling or high on the wall. At the press of a button (or via projector trigger), the screen drops to its deployed position. When not in use, the screen retracts into the housing and becomes invisible.

This makes electric screens the better choice anywhere that appearance matters when the screen is not in use — living rooms, boardrooms, multi-purpose spaces, or any room where a large rectangular frame on the wall would feel out of place 23 hours a day.

Image Quality: Fixed Frame Wins on Paper, Matters Less in Practice

A fixed frame screen maintains perfectly consistent tension across the entire fabric surface. The image is absolutely flat, with no ripple, bow, or variation from edge to edge. This is measurably better than an electric screen's fabric, which can develop minor bow or ripple over time as the rolling mechanism wears.

In practice, for typical home viewing distances (2–5 metres), the difference is imperceptible. No viewer sitting at normal distance can distinguish between a well-tensioned electric screen and a fixed frame at the same size. The quality difference only becomes potentially visible in very large formats (150"+) or in precise calibration environments where you're specifically measuring uniformity.

For the vast majority of home use, both deliver equivalent perceived image quality.

Side-by-Side Comparison

Factor	Fixed Frame	Electric Motorized
Image flatness	Excellent — always perfectly taut	Very good — minor sag possible over years
Appearance when not in use	Large frame always visible on wall	Retracts fully into ceiling housing
Setup effort	Frame assembly + wall mounting	Housing ceiling mount + power connection
Room flexibility	Dedicated viewing room only	Any multi-purpose room
Price	Generally lower	Higher (motor, housing, controls)
Reliability	No moving parts — lasts indefinitely	Motor can require service after many years
Best for	Dedicated home theaters	Living rooms, multi-purpose spaces

Installation Differences

Fixed frame installation

A fixed frame screen arrives as an aluminum frame kit and a fabric panel. Assembly takes 30–60 minutes: you connect the frame sections, attach the fabric by pressing it into the channel around the frame perimeter, then hang the completed frame on the wall using the included hardware. The frame mounts on wall studs the same way a large shelf or TV mount does. Most homeowners complete this without professional help.

Electric screen installation

An electric screen housing mounts to the ceiling (or a high wall position). It requires a power connection nearby — either a ceiling outlet or a cable run to an existing outlet. The housing weight (typically 15–35 kg depending on size) needs to be anchored to ceiling joists. You'll also want a switch, IR receiver, or projector trigger wiring. This is manageable DIY but involves more planning than a fixed frame mount.

When to Choose a Fixed Frame Screen

• Dedicated home theater or media room — the room is only used for watching; a permanent frame is appropriate and aesthetically coherent
• You want the best possible image flatness — for critical viewing and calibration
• Simpler installation without electrical work — no ceiling outlet or trigger wiring required
• Budget matters — fixed frame screens cost less than equivalent electric models
• You don't need the screen to disappear — media room alcoves, rooms with a feature wall, or dark-walled theater rooms where the frame blends in

When to Choose an Electric Motorized Screen

• Living room or open-plan space — the room has other uses and you don't want a large white frame dominating the wall when you're not watching
• Multi-purpose rooms — home offices that double as media rooms, dining rooms used for occasional movie nights
• You want automated control — electric screens can tie into smart home systems, projector triggers, or universal remotes for one-touch operation
• Ceiling projection setup — electric screens often pair naturally with ceiling-mounted projectors for a fully hidden, ceiling-housed setup
• Rental properties — a retractable screen causes less visual disruption to tenants or future buyers

TrueThrow Options by Type

Fixed frame screens

TrueThrow fixed frame screens are available in every surface type: Matte White for dark rooms, High-Contrast Grey for rooms where the projector is brighter than needed, Black Crystal ALR and Grey Crystal ALR for bright rooms, and Woven Acoustic Transparent for behind-screen speaker setups. Sizes from 84" to 150".

Electric motorized screens

TrueThrow electric screens share the same surface options as the fixed frame range. The motorized housing includes a quiet tubular motor, an IR remote, and projector trigger support. If you want the screen to retract seamlessly into the ceiling with minimal housing visibility, the electric range delivers exactly that.

For UST projectors: Floor-Rising screen

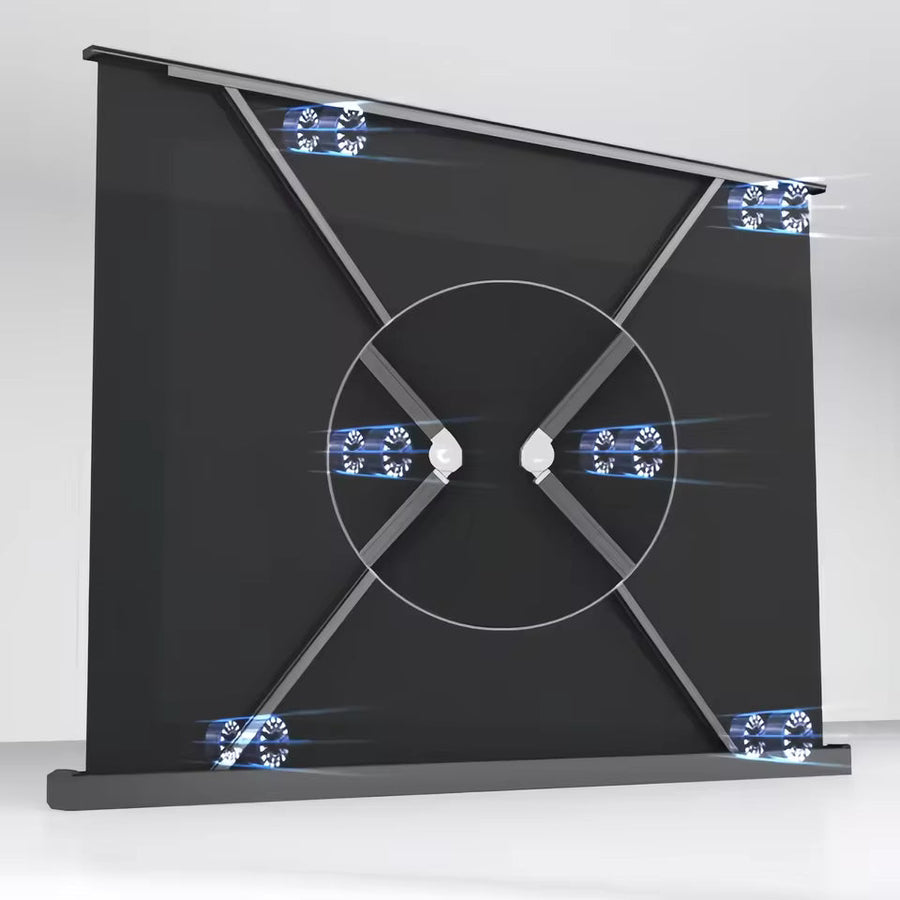

If you own a UST or laser TV projector and want a screen that stores entirely out of sight, the TrueThrow Floor-Rising UST Screen rises from a floor housing. When retracted, only a slim base unit is visible — the screen is entirely hidden until you want it. This is the most discreet solution available for laser TV setups.

---
